Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWF1C220MCL1GBCAP ALUM 22UF 20% 16V SMD |
3,690 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWF | Not For New Designs | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 100 kHz | 2.6 Ohms | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UPW0J152MPDCAP ALUM 1500UF 20% 6.3V RADIAL |
2,518 | - |
|
Datasheet |
Bulk | UPW | Not For New Designs | 1500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.037 A @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
UWF1E220MCL1GBCAP ALUM 22UF 20% 25V SMD |
3,843 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWF | Not For New Designs | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | 1.3 Ohms | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWF1V6R8MCL1GBCAP ALUM 6.8UF 20% 35V SMD |
3,660 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWF | Not For New Designs | 6.8 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 100 kHz | 2.6 Ohms | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UUR1A151MCL1GSCAP ALUM 150UF 20% 10V SMD |
2,881 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUR | Not For New Designs | 150 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 85 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

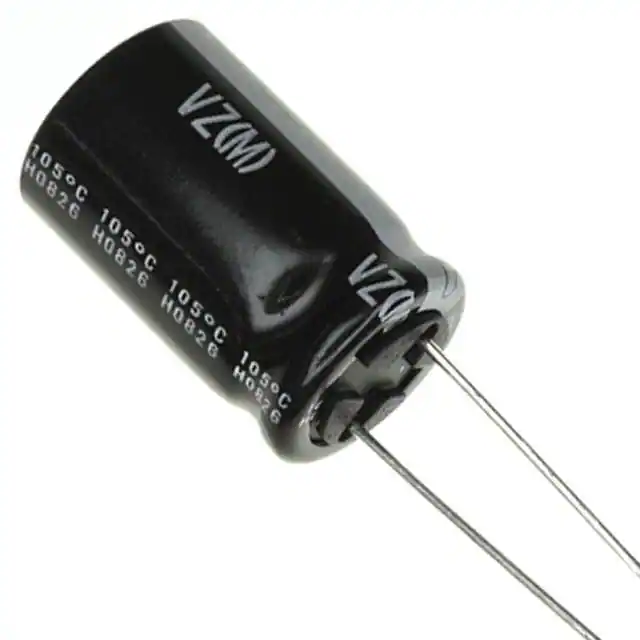

UVZ2G220MHD1TNCAP ALUM 22UF 20% 400V RADIAL |
3,790 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 22 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 165 mA @ 120 Hz | 264 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCD1E150MCL1GSCAP ALUM 15UF 20% 25V SMD |
2,690 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 15 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UCD0J680MCL1GSCAP ALUM 68UF 20% 6.3V SMD |
2,079 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 68 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UCD1E270MCL1GSCAP ALUM 27UF 20% 25V SMD |
2,328 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 27 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UWD1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
3,487 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 760 mOhms | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
UCD1E680MCL1GSCAP ALUM 68UF 20% 25V SMD |
3,156 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 68 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPJ2A181MHD6TNCAP ALUM 180UF 20% 100V RADIAL |
3,780 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 180 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 706 mA @ 120 Hz | 995 mA @ 10 kHz | 110 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPJ2A221MHD6TNCAP ALUM 220UF 20% 100V RADIAL |
2,638 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 220 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 854 mA @ 120 Hz | 1.17 A @ 10 kHz | 93 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBX1K330MPL1TDCAP ALUM 33UF 20% 80V RADIAL |
2,327 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 33 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 210 mA @ 120 Hz | 420 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
URZ1A332MHD1TNCAP ALUM 3300UF 20% 10V RADIAL |
2,384 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 3300 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.081 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UVK0J103MHD1TNCAP ALUM 10000UF 20% 6.3V RADIAL |
2,561 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 10000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.7025 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UWD1H150MCL1GSCAP ALUM 15UF 20% 50V SMD |
3,903 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 15 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 82.5 mA @ 120 Hz | 165 mA @ 100 kHz | 880 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWD1V270MCL1GSCAP ALUM 27UF 20% 35V SMD |
2,651 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 27 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWD1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
3,548 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWF1E330MCL1GBCAP ALUM 33UF 20% 25V SMD |
2,277 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWF | Not For New Designs | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | 1.3 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
