Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHW1E821MPDCAP ALUM 820UF 20% 25V RADIAL |
3,705 | - |
|
Datasheet |
Bulk | UHW | Not For New Designs | 820 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.5 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UVK2E680MHD1TNCAP ALUM 68UF 20% 250V RADIAL |
3,144 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 68 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 608 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHE1J181MPDCAP ALUM 180UF 20% 63V RADIAL |
2,648 | - |
|
Datasheet |
Bulk | UHE | Not For New Designs | 180 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 362.6 mA @ 120 Hz | - | 210 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
UPS0J681MPD1TDCAP ALUM 680UF 20% 6.3V RADIAL |
2,388 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 680 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 426 mA @ 120 Hz | 600 mA @ 100 kHz | 190 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UVY0J103MHD1TNCAP ALUM 10000UF 20% 6.3V RADIAL |
2,924 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 10000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.8975 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

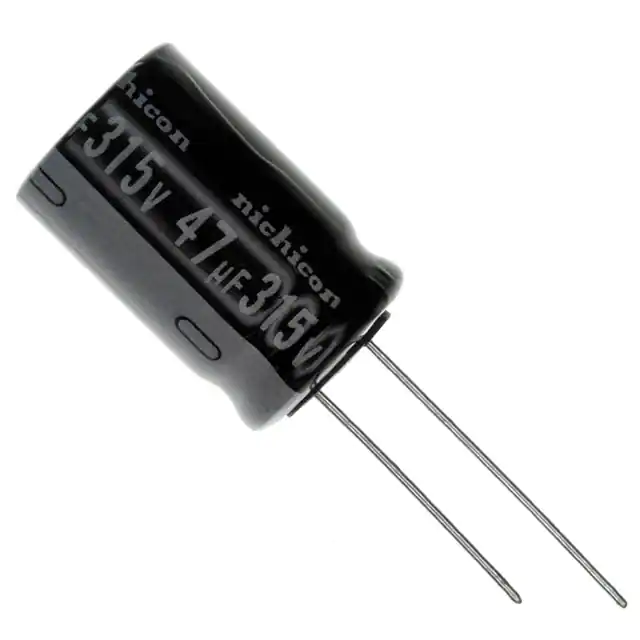

UVZ2F470MHD1TNCAP ALUM 47UF 20% 315V RADIAL |
3,104 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 47 µF | ±20% | 315 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 368 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UKW1C332MHD1TOCAP ALUM 3300UF 20% 16V RADIAL |
2,487 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKW | Not For New Designs | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.7 A @ 120 Hz | 1.955 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UKW2A331MHD1TOCAP ALUM 330UF 20% 100V RADIAL |
2,299 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKW | Not For New Designs | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 750 mA @ 120 Hz | 1.125 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UVR2F470MHD1TNCAP ALUM 47UF 20% 315V RADIAL |
2,276 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 47 µF | ±20% | 315 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 340 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

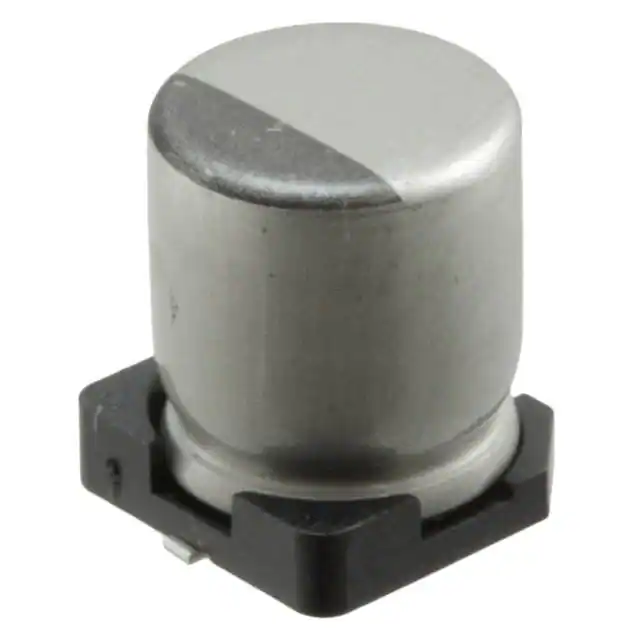

UWD0J331MCL1GSCAP ALUM 330UF 20% 6.3V SMD |
2,484 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UWD1V560MCL1GSCAP ALUM 56UF 20% 35V SMD |
3,590 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 56 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPM1K181MHD6TNCAP ALUM 180UF 20% 80V RADIAL |
3,955 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 180 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 545 mA @ 120 Hz | 766 mA @ 10 kHz | 150 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UPW2A391MHD1TNCAP ALUM 390UF 20% 100V RADIAL |
2,189 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 390 µF | ±20% | 100 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 945 mA @ 120 Hz | 1.26 A @ 100 kHz | 83 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCYW66R8MPDCAP ALUM 6.8UF 20% 420V RADIAL |
2,481 | - |
|
Datasheet |
Bulk | UCY | Active | 6.8 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UWP1HR33MCL1GBCAP ALUM 0.33UF 20% 50V SMD |
2,396 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWP | Active | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 2.8 mA @ 120 Hz | 4.2 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UCY2H150MHD1TOCAP ALUM 15UF 20% 500V RADIAL |
2,027 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 15 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 440 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UZS1C330MCL1GBCAP ALUM 33UF 20% 16V SMD |
2,808 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 49 mA @ 120 Hz | 73.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.181 (4.60mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UZS1H100MCL1GBCAP ALUM 10UF 20% 50V SMD |
2,207 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 33 mA @ 120 Hz | 49.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.181 (4.60mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPM1K390MPD1TDCAP ALUM 39UF 20% 80V RADIAL |
2,322 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 39 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 170 mA @ 120 Hz | 300 mA @ 10 kHz | 460 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UVZ1A682MHD1TNCAP ALUM 6800UF 20% 10V RADIAL |
3,312 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 6800 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 1.8055 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
