Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1V681MHD1TOCAP ALUM 680UF 20% 35V RADIAL |
2,573 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.7 A @ 10 kHz | 36 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPM1V821MHD1TOCAP ALUM 820UF 20% 35V RADIAL |
3,069 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 820 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 1.76 A @ 10 kHz | 32 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

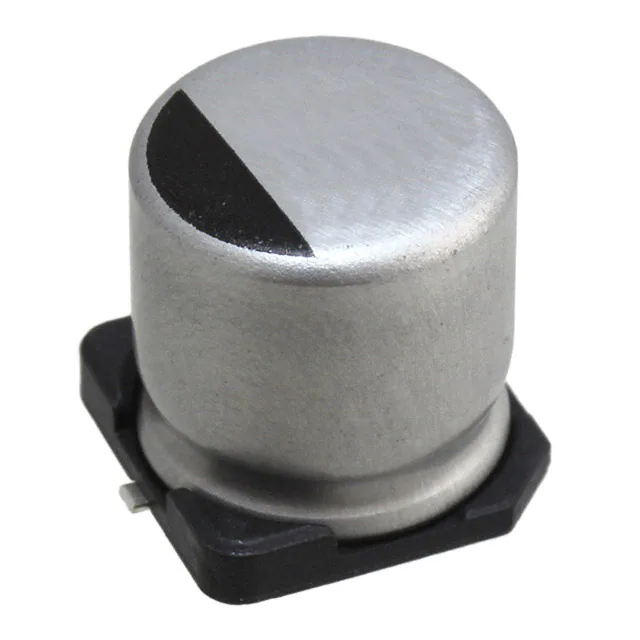

UCX1A331MCL1GSCAP ALUM 330UF 20% 10V SMD |
2,346 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 330 µF | ±20% | 10 V | 150mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UVZ2E3R3MPDCAP ALUM 3.3UF 20% 250V RADIAL |
2,927 | - |
|
Datasheet |
Bulk | UVZ | Not For New Designs | 3.3 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPW0J331MED6CAP ALUM 330UF 20% 6.3V RADIAL |
3,854 | - |
|
Datasheet |
Bulk | UPW | Not For New Designs | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 279.5 mA @ 120 Hz | 430 mA @ 100 kHz | 230 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.591 (15.00mm) | - | Through Hole |
|
UVZ2G2R2MPDCAP ALUM 2.2UF 20% 400V RADIAL |
3,756 | - |
|
Datasheet |
Bulk | UVZ | Not For New Designs | 2.2 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 48 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

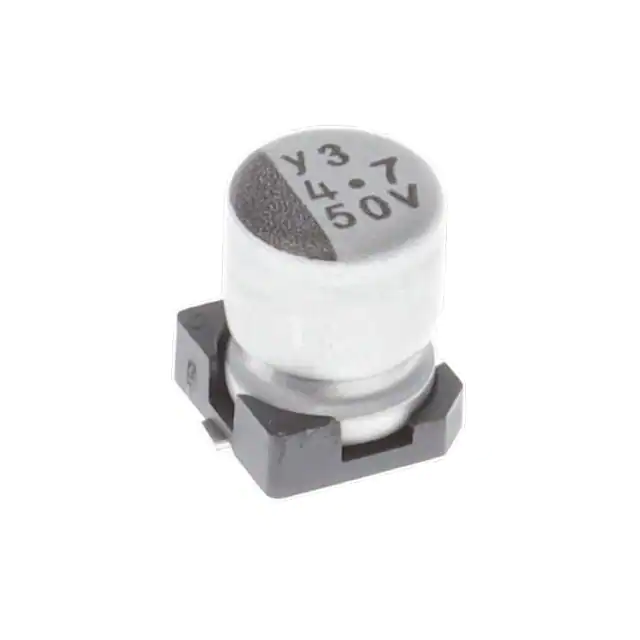

UWR1H4R7MCL1GBCAP ALUM 4.7UF 20% 50V SMD |
3,319 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWR | Not For New Designs | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
ULH2G5R6MNL1GSCAP ALUM 5.6UF 20% 400V SMD |
3,595 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULH | Active | 5.6 µF | ±20% | 400 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 45 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.433 (11.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UWJ1A220MCL1GBCAP ALUM 22UF 20% 10V SMD |
2,231 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWJ | Not For New Designs | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 49.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UCS2V220MHD1TOCAP ALUM 22UF 20% 350V RADIAL |
3,050 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCS | Active | 22 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 325 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
URY2F100MHD1TOCAP ALUM 10UF 20% 315V RADIAL |
3,455 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URY | Active | 10 µF | ±20% | 315 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 112 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | - | Through Hole |
|
UWG1H100MCL1GBCAP ALUM 10UF 20% 50V SMD |
3,103 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 35 mA @ 120 Hz | 70 mA @ 100 kHz | 2 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UVK2A331MHD1TOCAP ALUM 330UF 20% 100V RADIAL |
275 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UVR2V3R3MPDCAP ALUM 3.3UF 20% 350V RADIAL |
3,741 | - |
|
Datasheet |
Bulk | UVR | Not For New Designs | 3.3 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 88 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UPS2DR47MED1TDCAP ALUM 0.47UF 20% 200V RADIAL |
3,397 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 0.47 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12 mA @ 120 Hz | 19.2 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UWZ1H3R3MCL1GBCAP ALUM 3.3UF 20% 50V SMD |
3,030 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWZ | Active | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 14 mA @ 120 Hz | 21 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
UWZ1V4R7MCL1GBCAP ALUM 4.7UF 20% 35V SMD |
2,079 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWZ | Active | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 15 mA @ 120 Hz | 22.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
UPS2ER47MED1TDCAP ALUM 0.47UF 20% 250V RADIAL |
2,959 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 0.47 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12 mA @ 120 Hz | 19.2 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UCX1V470MCS6GSCAP ALUM 47UF 20% 35V SMD |
3,703 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 47 µF | ±20% | 35 V | 250mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 98.5 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.413 (10.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPJ2C330MHD1TOCAP ALUM 33UF 20% 160V RADIAL |
3,778 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 33 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 280 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
