Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCM1H100MCL1GSCAP ALUM 10UF 20% 50V SMD |
3,804 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCM | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 82.5 mA @ 120 Hz | 165 mA @ 100 kHz | 880 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UKT1A332MHD1TOCAP ALUM 3300UF 20% 10V RADIAL |
3,274 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKT | Not For New Designs | 3300 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | Audio | 1.05 A @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPJ2C470MHD1TNCAP ALUM 47UF 20% 160V RADIAL |
2,649 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 47 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
URZ2C680MHD1TNCAP ALUM 68UF 20% 160V RADIAL |
2,205 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 68 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
ULD2D4R7MED1TDCAP ALUM 4.7UF 20% 200V RADIAL |
2,626 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ULD | Not For New Designs | 4.7 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 98 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.512 (13.00mm) | - | Through Hole |
|

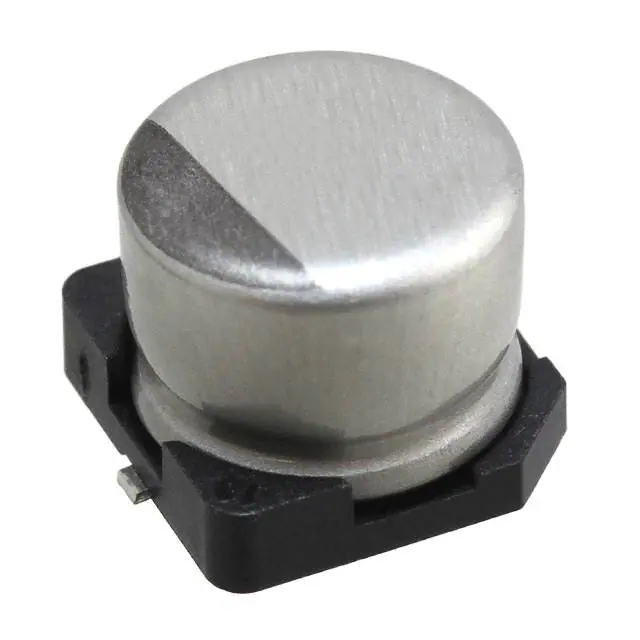

UWG1C470MCL1GBCAP ALUM 47UF 20% 16V SMD |
2,515 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 70 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UCS2D820MHD1TNCAP ALUM 82UF 20% 200V RADIAL |
2,697 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCS | Active | 82 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.38 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UBX2D150MPL1TDCAP ALUM 15UF 20% 200V RADIAL |
3,173 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 15 µF | ±20% | 200 V | - | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | 130 mA @ 120 Hz | 234 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UPS2F3R3MPD1TDCAP ALUM 3.3UF 20% 315V RADIAL |
2,181 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 3.3 µF | ±20% | 315 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UHW1A152MPDCAP ALUM 1500UF 20% 10V RADIAL |
2,900 | - |
|
Datasheet |
Bulk | UHW | Not For New Designs | 1500 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UCL1C680MCL1GSCAP ALUM 68UF 20% 16V SMD |
2,134 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCL | Active | 68 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UPJ1V122MHD6TNCAP ALUM 1200UF 20% 35V RADIAL |
2,067 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 1.98 A @ 10 kHz | 41 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPS2E3R3MPD1TDCAP ALUM 3.3UF 20% 250V RADIAL |
3,973 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 3.3 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 42 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UHE1V561MPDCAP ALUM 560UF 20% 35V RADIAL |
2,568 | - |
|
Datasheet |
Bulk | UHE | Not For New Designs | 560 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.238 A @ 120 Hz | 1.65 A @ 100 kHz | 42 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
UCS2V100MPDCAP ALUM 10UF 20% 350V RADIAL |
2,666 | - |
|
Datasheet |
Bulk | UCS | Active | 10 µF | ±20% | 350 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UZR1HR47MCL1GBCAP ALUM 0.47UF 20% 50V SMD |
3,627 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UZR | Not For New Designs | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 4 mA @ 120 Hz | 6 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.156 (3.95mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UPA1C331MPD1TDCAP ALUM 330UF 20% 16V RADIAL |
2,138 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 330 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 409.5 mA @ 120 Hz | - | 90 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPM1C391MPD1TDCAP ALUM 390UF 20% 16V RADIAL |
3,704 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 390 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 730 mA @ 10 kHz | 100 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UBX1K470MPL1TDCAP ALUM 47UF 20% 80V RADIAL |
2,626 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 47 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 275 mA @ 120 Hz | 550 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UZS1H4R7MCL1GBCAP ALUM 4.7UF 20% 50V SMD |
2,386 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.181 (4.60mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
