Power Integrations SID1183K

SID1183K
Part No.:
SID1183K
Manufacturer:
Power Integrations
Category:
PMIC - Gate Drivers
Package:
16-PowerSOIC (0.350, 8.89mm Width), 15 Leads
Datasheet:
Valley Electronics(HK)LimitedSID1183K.pdf
Description:

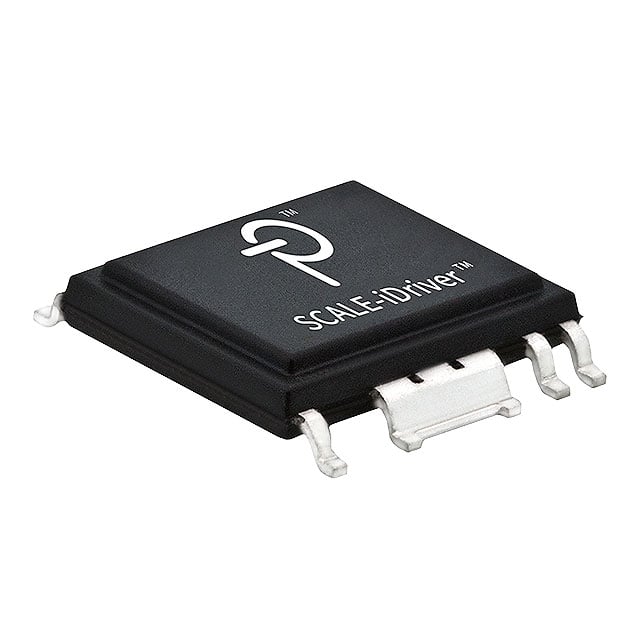

IC GATE DRV HI/LO SIDE ESOP-R16B
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Product details

  • Specifications
  • FAQ
  • Comparison
  • Related
Packaging:
Tube
Series:
SCALE™-1
ProductStatus:
Obsolete
DrivenConfiguration:
High-Side or Low-Side
ChannelType:
Single
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
4.75V ~ 5.25V
LogicVoltage-VILVIH:
0.5V, 3.3V
Current-PeakOutput(SourceSink):
8A, 48A
InputType:
Inverting
HighSideVoltage-Max(Bootstrap):
-
Rise/FallTime(Typ):
465ns, 460ns
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount
Category:
PMIC - Gate Drivers
Datasheet:
Valley Electronics(HK)LimitedSID1183K.pdf
