Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Resistance(Ohms) | Tolerance | Power(Watts) | BuiltinSwitch | NumberofTurns | Features | Taper | NumberofGangs | AdjustmentType | TemperatureCoefficient | Rotation | ResistiveMaterial | TerminationStyle | ActuatorType | ActuatorLength | ActuatorDiameter | BushingThread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16BP222MAB15P16 BP 2K2 20% A BO E3 |
3,714 | - |
|
Datasheet |
Box | P16 | Active | 2.2k | ±20% | 1W | - | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346 (8.80mm) | 0.630 (16.00mm) | M10 x 0.75 |
|
P16YP223MAB15P16 YP 2200 20% A BO E3 |
3,695 | - |
|
Datasheet |
Box | P16 | Active | 22k | ±20% | 1W | - | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346 (8.80mm) | 0.630 (16.00mm) | M10 x 0.75 |
|
|
P16YP472MAB15P16 YP 4700 20% A BO E3 |
3,330 | - |
|
Datasheet |
Box | P16 | Active | 4.7k | ±20% | 1W | - | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346 (8.80mm) | 0.630 (16.00mm) | M10 x 0.75 |
|
P16RP473MAB15P16 RP 47K 20% A BO E3 |
2,434 | - |
|
Datasheet |
Box | P16 | Active | 47k | ±20% | 1W | - | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346 (8.80mm) | 0.630 (16.00mm) | M10 x 0.75 |
|
|
P16YP104MAB15P16 YP 100K 20% A BO E3 |
3,614 | - |
|
Datasheet |
Box | P16 | Active | 100k | ±20% | 1W | - | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346 (8.80mm) | 0.630 (16.00mm) | M10 x 0.75 |
|
|
P16RP103MAB15P16 RP 10K 20% A BO E3 |
2,577 | - |
|
Datasheet |
Box | P16 | Active | 10k | ±20% | 1W | - | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346 (8.80mm) | 0.630 (16.00mm) | M10 x 0.75 |
|
|
P16BP101MAB15P16 BP 100U 20% A BO E3 |
2,327 | - |
|
Datasheet |
Box | P16 | Active | 100 | ±20% | 1W | - | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346 (8.80mm) | 0.630 (16.00mm) | M10 x 0.75 |
|

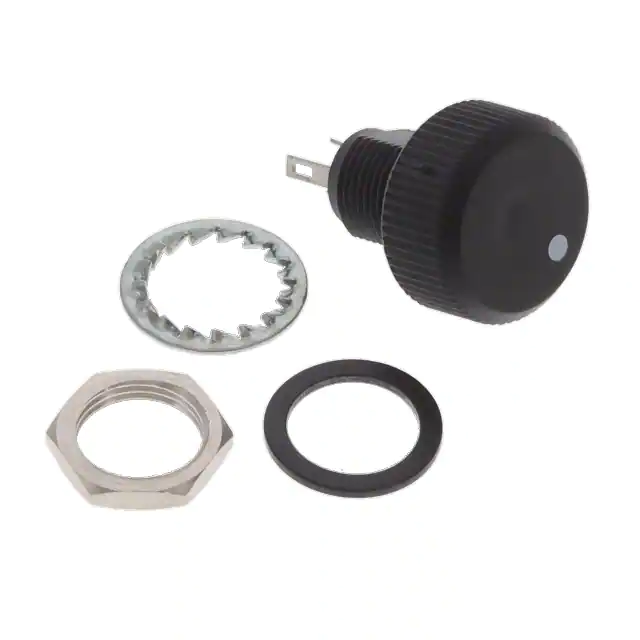

P16NP221MAB15SFERNICE POTENTIOMETERS & TRIMME |
2,529 | - |
|
Box | P16 | Active | 220 | ±20% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 | |
|
P11H1F0GHFY00472KAP11H 1 F 0 GH F Y00 4K7 10% A E3 |
100 | - |
|
Datasheet |
Box | P11H | Active | 4.7k | ±10% | 1W | None | 1 | High Torque | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750 (19.05mm) | 0.250 (6.35mm) | 3/8-32 |
|
|
P11H1F0GHFY00103KAP11H 1 F 0 GH F Y00 10K 10% A E3 |
100 | - |
|
Datasheet |
Box | P11H | Active | 10k | ±10% | 1W | None | 1 | High Torque | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750 (19.05mm) | 0.250 (6.35mm) | 3/8-32 |
|
|
P11H1F0GHFY00502KAP11H 1 F 0 GH F Y00 5K 10% A E3 |
100 | - |
|
Datasheet |
Box | P11H | Active | 5k | ±10% | 1W | None | 1 | High Torque | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750 (19.05mm) | 0.250 (6.35mm) | 3/8-32 |
|
|
P11H1F0GHFW10103KAP11H 1 F 0 GH F W10 10K 10% A E3 |
3,681 | - |
|
Datasheet |
Box | P11H | Active | 10k | ±10% | 1W | None | 1 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750 (19.05mm) | 0.250 (6.35mm) | 3/8-32 |
|

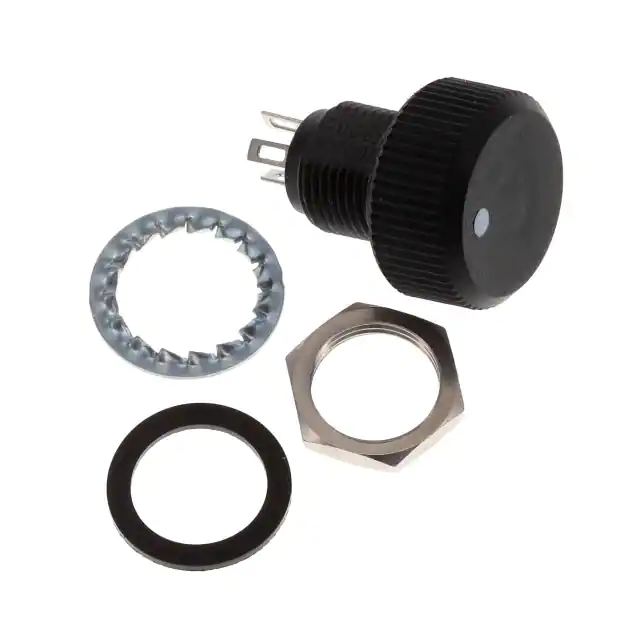

P16NP202KAB15SFERNICE POTENTIOMETERS & TRIMME |
3,718 | - |
|
Box | P16 | Active | 2k | ±10% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 | |
|

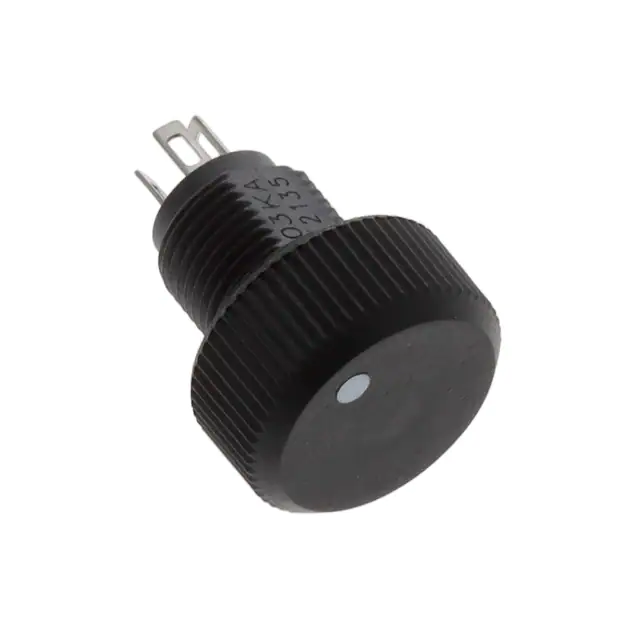

P16NP103KAB15SFERNICE POTENTIOMETERS & TRIMME |
3,125 | - |
|
Box | P16 | Active | 10k | ±10% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 | |
|
P16NP472KAB15SFERNICE POTENTIOMETERS & TRIMME |
2,926 | - |
|
Box | P16 | Active | 4.7k | ±10% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 | |
|

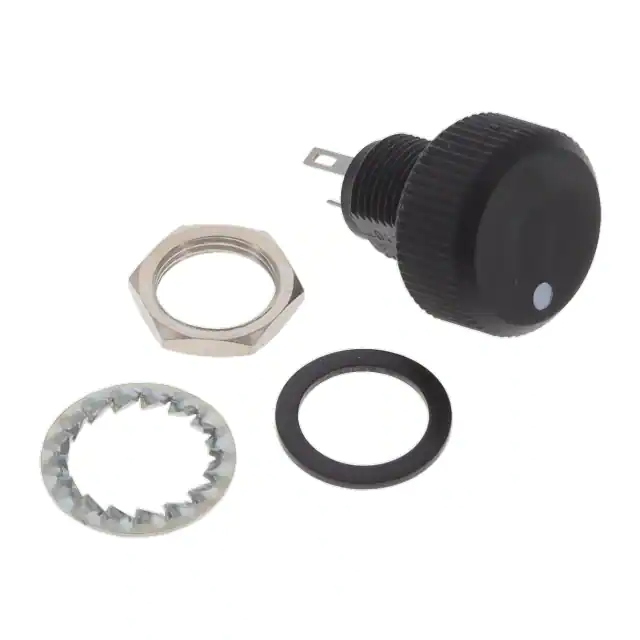

P16NP222KAB15SFERNICE POTENTIOMETERS & TRIMME |
2,912 | - |
|
Box | P16 | Active | 2.2k | ±10% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 | |
|
|
P16BP223MAB15SFERNICE POTENTIOMETERS & TRIMME |
100 | - |
|
Datasheet |
Box | P16 | Active | 22k | ±20% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 |
|
P16WP223MAB15SFERNICE POTENTIOMETERS & TRIMME |
100 | - |
|
Box | P16 | Active | 22k | ±20% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 | |
|
|
P16WP104MAB15SFERNICE POTENTIOMETERS & TRIMME |
100 | - |
|
Box | P16 | Active | 100k | ±20% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 | |
|
|
P16WP103MAB15SFERNICE POTENTIOMETERS & TRIMME |
100 | - |
|
Box | P16 | Active | 10k | ±20% | 1W | None | 1 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630 (16.00mm) | M10 x 0.75 |
