Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-351J-500EGATE DRIVE OPTOCOUPLER,T/R+LF |
3,708 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 50ns | 37ns, 30ns | 4.5A, 4.5A | 5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-36JV-500EOPTOISO 3.75KV 1CH GATE DVR 16SO |
2,550 | - |
|
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-38JT-500EOPTOISO 5KV 1CH GATE DRIVER 16SO |
3,629 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|

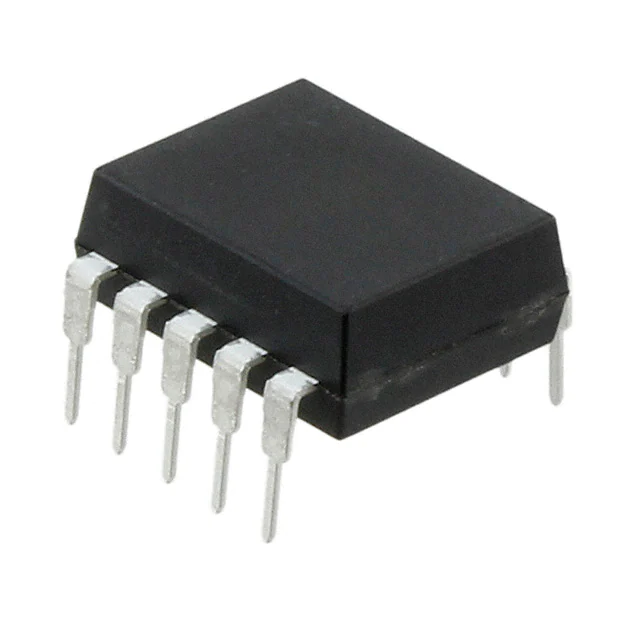

ACNV3130-000EOPTOISO 7.5KV 1CH GATE DVR 10DIP |
3,192 | - |
|
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Through Hole |
|
|
ACPL-36JV-000EOPTOISO 3.75KV 1CH GATE DVR 16SO |
3,611 | - |
|
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-38JT-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
2,477 | - |
|
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
ACNV3130-300EOPTOISO 7.5KV GATE DRVR 10DIP GW |
2,985 | - |
|
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACNV3130-500EOPTOISO 7.5KV GATE DRVR 10DIP GW |
2,940 | - |
|
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-33JT-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
3,004 | - |
|
Datasheet |
Bulk | Automotive, AEC-Q100 | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 300ns | 230ns | 76ns, 41ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-34JT-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
2,527 | - |
|
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 280ns | 100ns | 60ns, 50ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 15V ~ 25V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-32JT-500EOPTOISO 5KV 1CH GATE DRVR 16SOIC |
3,044 | - |
|
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 250ns | 140ns | 70ns, 35ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 18V ~ 22V | -40°C ~ 125°C | Surface Mount |
|
ACPL-33JT-500EAUTOMOTIVE OPTOCOUPLER |
3,639 | - |
|
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100 | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 300ns | 230ns | 76ns, 41ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-34JT-500EOPTOISO 5KV 1CH GATE DRIVER 16SO |
3,060 | - |
|
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 280ns | 100ns | 60ns, 50ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 15V ~ 25V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-302J-500EOPTOISO 5KV 1CH GATE DRIVER 16SO |
2,600 | - |
|
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 250ns | 140ns | 70ns, 35ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 18V ~ 22V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-316J#500OPTOISO 5KV 2CH GATE DRIVER 16SO |
2,842 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-315JOPTOISO 5KV 2CH GATE DRIVER 16SO |
3,277 | - |
|
Datasheet |
Tube | - | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-315J#500OPTOISO 5KV 2CH GATE DRIVER 16SO |
3,861 | - |
|
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-5150-200OPTOISO 1.5KV 1CH GATE DRVR 8DIP |
3,248 | - |
|
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.5V | 25 mA | 15V ~ 30V | -55°C ~ 125°C | Through Hole |
|
|
HCPL-5150-100OPTOISO 1.5KV 1CH GATE DRVR 8SMD |
2,567 | - |
|
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.5V | 25 mA | 15V ~ 30V | -55°C ~ 125°C | Surface Mount |
|
|
HCPL-5150-300OPTOISO 1.5KV GATE DRVR 8DIPGW |
3,091 | - |
|
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.5V | 25 mA | 15V ~ 30V | -55°C ~ 125°C | Surface Mount |
