Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

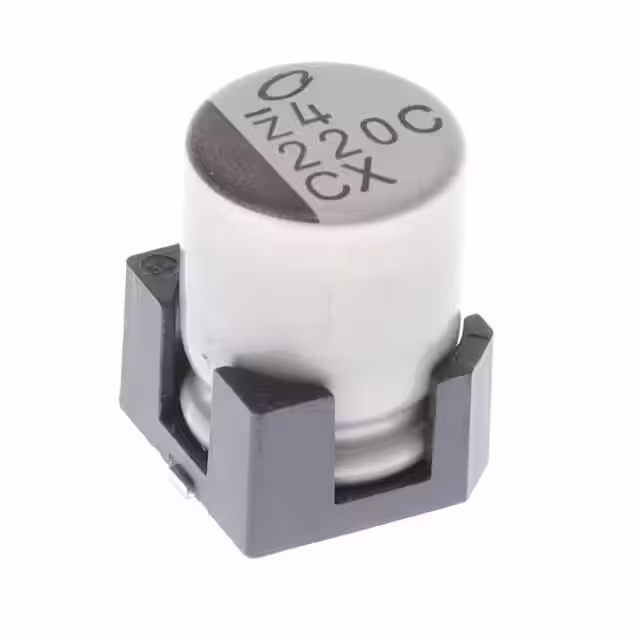

UCX1C221MCS1GSCAP ALUM 220UF 20% 16V SMD |
3,950 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 220 µF | ±20% | 16 V | 200mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCH1V221MCS1GSCAP ALUM 220UF 20% 35V SMD |
3,556 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCH | Active | 220 µF | ±20% | 35 V | 200mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.433 (11.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCZ1K470MCS1GSCAP ALUM 47UF 20% 80V SMD |
3,538 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 47 µF | ±20% | 80 V | 550mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCH1E331MCS1GSCAP ALUM 330UF 20% 25V SMD |
3,167 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCH | Active | 330 µF | ±20% | 25 V | 200mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.433 (11.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ULV2W3R3MNL1GSCAP ALUM 3.3UF 20% 450V SMD |
2,602 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULV | Active | 3.3 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 40 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.433 (11.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
UCZ1E221MCS1GSCAP ALUM 220UF 20% 25V SMD |
3,268 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 220 µF | ±20% | 25 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ1J330MCS1GSCAP ALUM 33UF 20% 63V SMD |
2,510 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 33 µF | ±20% | 63 V | 500mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 170 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ1J470MCS1GSCAP ALUM 47UF 20% 63V SMD |
3,500 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 47 µF | ±20% | 63 V | 500mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 170 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCH1V331MCS1GSCAP ALUM 330UF 20% 35V SMD |
3,970 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCH | Active | 330 µF | ±20% | 35 V | 150mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.433 (11.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ2A220MCS1GSCAP ALUM 22UF 20% 100V SMD |
3,352 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 22 µF | ±20% | 100 V | 550mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ2A330MCS1GSCAP ALUM 33UF 20% 100V SMD |
2,847 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 33 µF | ±20% | 100 V | 550mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ1K220MCS1GSCAP ALUM 22UF 20% 80V SMD |
2,178 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 22 µF | ±20% | 80 V | 550mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ1K330MCS1GSCAP ALUM 33UF 20% 80V SMD |
2,352 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 33 µF | ±20% | 80 V | 550mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCH1E561MCS1GSCAP ALUM 560UF 20% 25V SMD |
2,303 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCH | Active | 560 µF | ±20% | 25 V | 150mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.433 (11.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ1A331MCS1GSCAP ALUM 330UF 20% 10V SMD |
2,272 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 330 µF | ±20% | 10 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCX1E221MCS1GSCAP ALUM 220UF 20% 25V SMD |
2,941 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 220 µF | ±20% | 25 V | 150mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCX1C471MCS1GSCAP ALUM 470UF 20% 16V SMD |
3,795 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 470 µF | ±20% | 16 V | 150mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

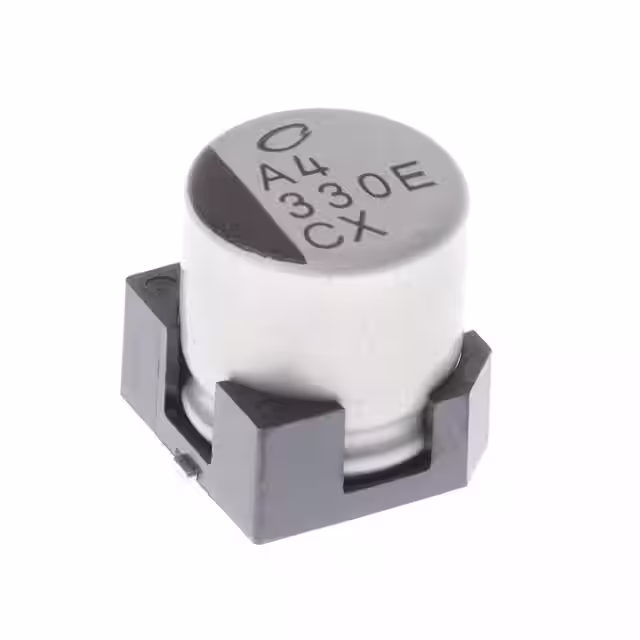

UCX1E331MCS1GSCAP ALUM 330UF 20% 25V SMD |
2,719 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 330 µF | ±20% | 25 V | 150mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ1C471MCS1GSCAP ALUM 470UF 20% 16V SMD |
2,715 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 470 µF | ±20% | 16 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UHE1E102MHD6CAP ALUM 1000UF 20% 25V RADIAL |
2,595 | - |
|
Datasheet |
Bulk | UHE | Not For New Designs | 1000 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.425 A @ 120 Hz | 1.9 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
