Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT2W681MSEFCAP ALUM 680UF 20% 450V SCREW |
2,786 | - |
|
Datasheet |
Bulk | LNT | Active | 680 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
LNT1C154MSECAP ALUM 150000UF 20% 16V SCREW |
3,148 | - |
|
Datasheet |
Bulk | LNT | Active | 150000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.65 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
LNT2H471MSEFCAP ALUM 470UF 20% 500V SCREW |
2,538 | - |
|
Datasheet |
Bulk | LNT | Active | 470 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.48 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNT1E683MSECAP ALUM 68000UF 20% 25V SCREW |
3,244 | - |
|
Datasheet |
Bulk | LNT | Active | 68000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.2 A @ 120 Hz | 11.73 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

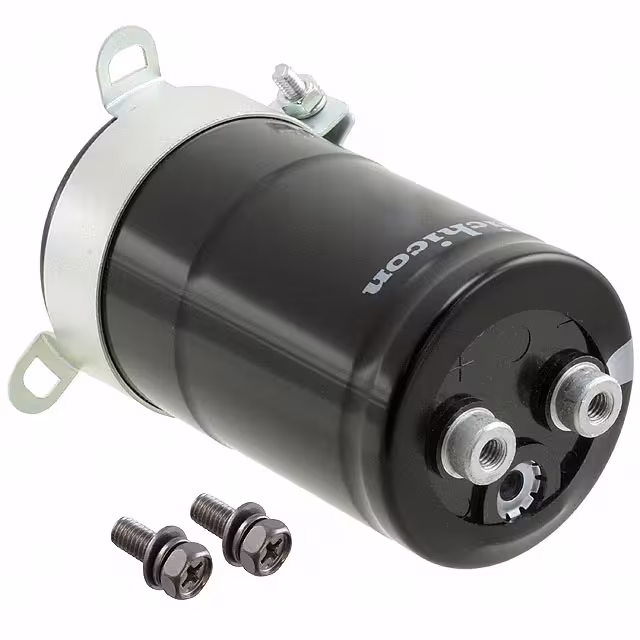

LNX2V182MSEFCAP ALUM 1800UF 20% 350V SCREW |
3,962 | - |
|
Datasheet |
Bulk | LNX | Active | 1800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 10.22 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.661 (93.00mm) | - | Chassis Mount |
|

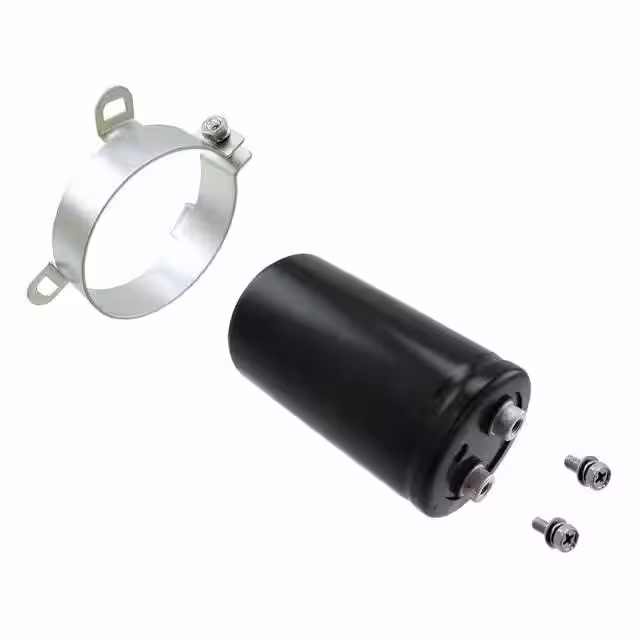

LNY2V272MSEFCAP ALUM 2700UF 20% 350V SCREW |
3,314 | - |
|
Datasheet |
Bulk | LNY | Active | 2700 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 120 Hz | 17.08 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.543 (90.00mm) | - | Chassis Mount |
|
LQR2V182MSEFCAP ALUM 1800UF 20% 350V SCREW |
3,936 | - |
|
Datasheet |
Bulk | LQR | Active | 1800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 10.08 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
LNC2W102MSEFCAP ALUM 1000UF 20% 450V SCREW |
2,742 | - |
|
Datasheet |
Bulk | LNC | Active | 1000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13.02 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 2.874 (73.00mm) | - | Chassis Mount |
|

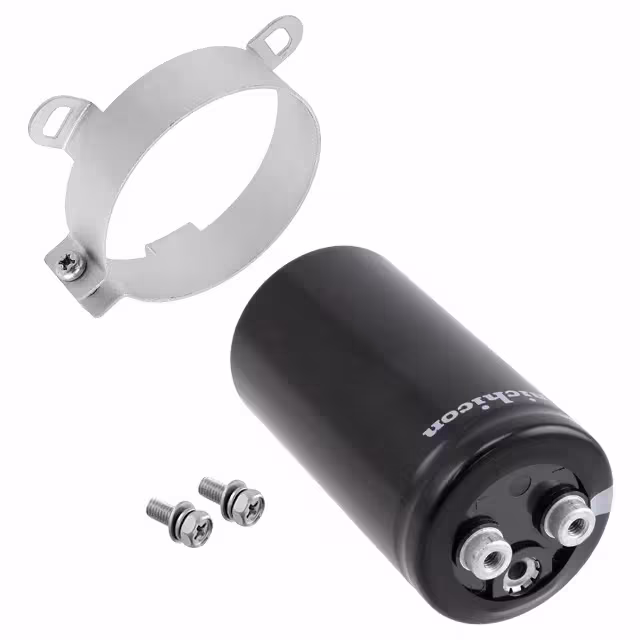

LNK2V222MSEFCAP ALUM 2200UF 20% 350V SCREW |
2,616 | - |
|
Datasheet |
Bulk | LNK | Active | 2200 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.2 A @ 120 Hz | 11.48 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.740 (95.00mm) | - | Chassis Mount |
|
|
LNC2H102MSEFCAP ALUM 1000UF 20% 500V SCREW |
3,776 | - |
|
Datasheet |
Bulk | LNC | Active | 1000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.3 A @ 120 Hz | 14.42 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.465 (88.00mm) | - | Chassis Mount |
|
LQR2V222MSEFCAP ALUM 2200UF 20% 350V SCREW |
3,820 | - |
|
Datasheet |
Bulk | LQR | Active | 2200 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 120 Hz | 12.74 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNC2W152MSEFCAP ALUM 1500UF 20% 450V SCREW |
2,014 | - |
|
Datasheet |
Bulk | LNC | Active | 1500 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.4 A @ 120 Hz | 14.56 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.661 (93.00mm) | - | Chassis Mount |
|
LNY2G222MSEFCAP ALUM 2200UF 20% 400V SCREW |
2,608 | - |
|
Datasheet |
Bulk | LNY | Active | 2200 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.740 (95.00mm) | - | Chassis Mount |
|
LNY2G102MSEFCAP ALUM 1000UF 20% 400V SCREW |
2,564 | - |
|
Datasheet |
Bulk | LNY | Active | 1000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.96 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 2.362 (60.00mm) | - | Chassis Mount |
|
LNT1H473MSECAP ALUM 47000UF 20% 50V SCREW |
3,164 | - |
|
Datasheet |
Bulk | LNT | Active | 47000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.9 A @ 120 Hz | 11.385 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNT1J333MSECAP ALUM 33000UF 20% 63V SCREW |
3,205 | - |
|
Datasheet |
Bulk | LNT | Active | 33000 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.4 A @ 120 Hz | 10.81 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNT2D472MSECAP ALUM 4700UF 20% 200V SCREW |
2,092 | - |
|
Datasheet |
Bulk | LNT | Active | 4700 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.1 A @ 120 Hz | 6.12 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNC2V102MSEFCAP ALUM 1000UF 20% 350V SCREW |
3,900 | - |
|
Datasheet |
Bulk | LNC | Active | 1000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 A @ 120 Hz | 11.76 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 2.283 (58.00mm) | - | Chassis Mount |
|
LNC2V272MSEGCAP ALUM 2700UF 20% 350V SCREW |
2,646 | - |
|
Datasheet |
Bulk | LNC | Active | 2700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.7 A @ 120 Hz | 19.18 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 2.874 (73.00mm) | - | Chassis Mount |
|

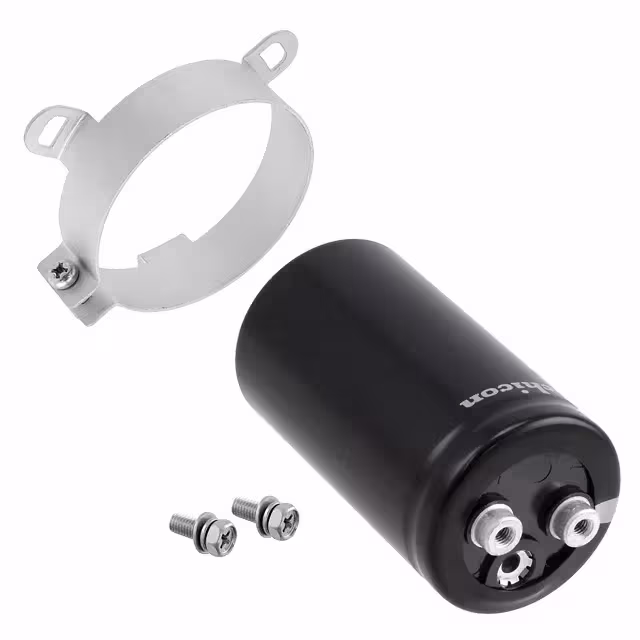

LNK2V182MSEFCAP ALUM 1800UF 20% 350V SCREW |
2,750 | - |
|
Datasheet |
Bulk | LNK | Active | 1800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 10.22 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.543 (90.00mm) | - | Chassis Mount |
